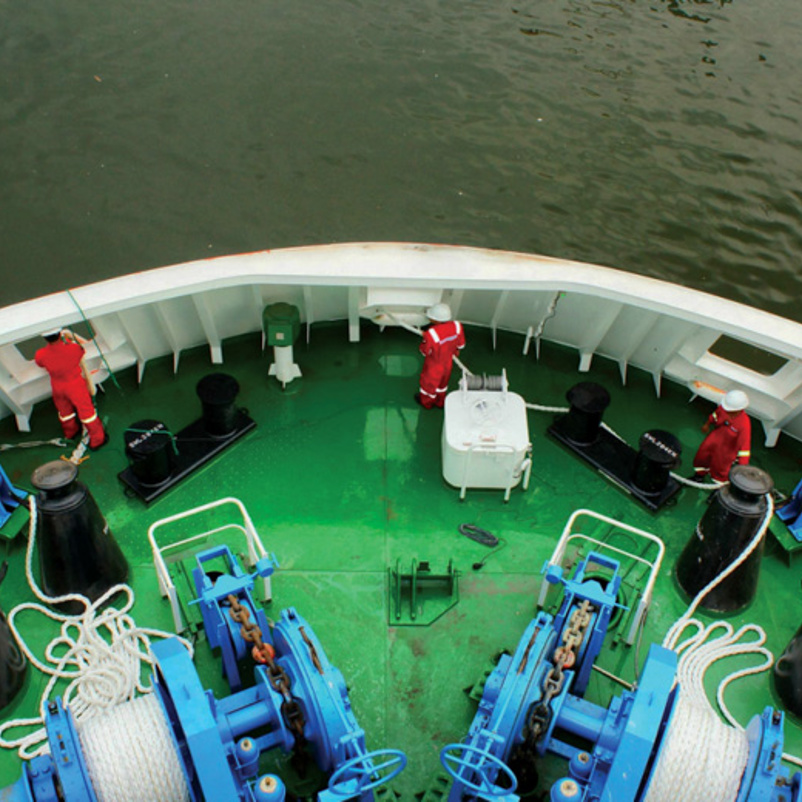

Fendercare supplies a comprehensive range of deck equipment such as fairleads for multiple marine-duty applications. Our range include multi-angle fairleads, pedestal fairleads, swivel head fairleads and roller fairleads.
Please view technical information and data sheets for our ship fairleads.
Multi-angle fairleads
Our multi-angle fairleads have 2 vertical rollers and 2 horizontal rollers in a standard design easily adapted to meet client specifications. Finished in proprietary primer, meeting ISO 13733 or JIS F 2006 standards, they’re ready for immediate installation.
Technical drawings:
ISO 13733 8 roller multi angle-fairlead technical drawing
ISO 13773 7 roller multi angle-fairlead technical drawing
ISO 13733 4 roller multi-angle fairlead technical drawing
JIS F 2026 4 roller multi-angle fairlead technical drawing
Pedestal roller fairleads (A3-1330)
Our pedestal roller fairleads are manufactured to ISO 13776 specification. The roller is constructed from cast iron with a self-lubricating synthetic bearing, offering long trouble-free life. The base is made from rolled steel plates.
Typical dimensions:
Normal size Dn | D1 | D2 | d | H | H1 | T1 | T2 | T3 | Z1 | Z2 | |
Type A and B | Type C | ||||||||||
150 | 220 | 243 | 71.5 | 81.5 | 200 | 100 | 16 | 10 | 16 | 8 | 5 |
200 | 288 | 300 | 93.5 | 102.5 | 200 | 100 | 20 | 12 | 20 | 10 | 6 |
250 | 357 | 370 | 113.5 | 119.5 | 200 | 100 | 22 | 12.5 | 22 | 11 | 6 |
300 | 417 | 430 | 128.5 | 130.5 | 225 | 125 | 24 | 13 | 24 | 12 | 6.5 |
350 | 472 | 490 | 145.5 | 152.5 | 225 | 125 | 26 | 17 | 26 | 15 | 8.5 |
400 | 540 | 550 | 154.5 | 164.5 | 250 | 150 | 28 | 18 | 28 | 17 | 9 |
450 | 600 | 620 | 167.5 | 179.5 | 250 | 150 | 30 | 20 | 30 | 20 | 10 |
500 | 655 | 680 | 178.5 | 195.5 | 250 | 150 | 32 | 22 | 34 | 23 | 11 |
Normal size Dn | SWL | Calculated weight (kg) (for reference only) |
|||||
θ= 90° | θ= 0° | ||||||
(KN) | (t) | (KN) | (t) | H=500 | H=1000 | H=1500 | |
150 | 255 | 27 | 185 | 19 | 55 | 115 | 198 |
200 | 441 | 45 | 314 | 32 | 85 | 169 | 278 |
250 | 579 | 59 | 412 | 42 | 113 | 210 | 335 |
300 | 726 | 74 | 510 | 52 | 145 | 256 | 395 |
350 | 1040 | 105 | 735 | 75 | 201 | 358 | 553 |
400 | 1246 | 127 | 883 | 90 | 255 | 436 | 657 |
450 | 1599 | 153 | 1128 | 115 | 314 | 530 | 791 |
500 | 1942 | 198 | 1373 | 140 | 383 | 636 | 938 |
Swivel head fairleads (31197)
Our heavy-duty single or double sheave swivel head fairleads and balanced head swivel fairleads offer a variety of sizes suitable for use in most deck-mounted or flange-mounted marine-duty applications.
Typical dimensions:
Wire rope dia. (mm) | Sheave dia. (mm) | A | B | E | F | J | K | M | N | O |
26 | 254 | 356 | 356 | 530 | 680 | 127 | 129 | 20 | 114 | 275 |
32 | 305 | 660 | 505 | 665 | 890 | 152 | 154 | 32 | 124 | 360 |
38 | 406 | 760 | 760 | 867 | 1280 | 203 | 205 | 38 | 178 | 460 |
44 | 508 | 1016 | 915 | 1070 | 1485 | 254 | 256 | 45 | 220 | 560 |
52 | 610 | 1220 | 1068 | 1265 | 1792 | 305 | 307 | 48 | 265 | 650 |
64 | 762 | 1420 | 1370 | 1565 | 2080 | 381 | 383 | 60 | 325 | 800 |
Warping rollers JIS 2014, ISO 13755 and DIN 819806 standards. Designed for a breaking strength of wire with a 180-degree wrap on the roller. The rollers can be supplied with or without circular base or pedestals, which can be fabricated to bespoke height requirements either conical or cylindrical in shape.
Technical drawings
JIS 2014 warping roller technical drawing
